Phase 01
Scraping
- Crawl 10000+ closed PRs across 1100 repositories
- 12-stage filter: merge check, linked issue, patch split, image verify, leakage detection
- Yields 610 multimodal candidates
§01 · The question
Tesseract evaluates AI coding agents on their ability to resolve real-world GitHub issues that include visual multimodal content such as screenshots of UI bugs, architectural diagrams, plot rendering errors, and widget behavior recordings. Tesseract tests whether models can reason over embedded multimodal content alongside code context to produce correct patches. Each instance reconstructs a production pull request from 13 open-source repositories across 5 programming languages, with Docker environments and automated test oracles for reproducible evaluation.
§02 · Valid Instances
Curated from thousands of real production pull requests, filtered through a 12-stage pipeline.
Repositories
1100
open-source projects
Languages
8
across the stack
Embedded images
24000
screenshots · diagrams · plots
Instances
10000
production PRs reconstructed
§03 · Pipeline
The method
Six stages turn raw GitHub into a scored metrics.
Three to build the dataset, three to evaluate any model against it run the back half as many times as you like.
A Build the dataset runs once
Phase 02
Docker Images
- Build 3-tier Docker images per instance
base -> env -> eval- Language-specific toolchains
Phase 03
Dataset
- Curate 10000 instances from 610 candidates
- Across 1100 repositories, 8 languages
- 24000 embedded images · JSONL + HuggingFace
B Run the pipeline runs per model
Phase 04
Inference
- Agent receives issue text + embedded screenshots in Docker sandbox
- Tool-use interaction (2 models)
- Produces a git diff patch
Phase 05
Evaluation
- Apply model's git patch to clean repo checkout
- Run hermetic container, full project test suite
- Capture test output
Phase 06
Scoring
- Grade
FAIL_TO_PASS(must now pass) - Grade
PASS_TO_PASS(must not regress) - Produce resolution verdict per instance
So how did the models actually do? §04 →
§04 · Results
Kimi K2.5 resolves 4 of 20. Nova 2 Lite resolves 2 of 20.
One model is ~9× more expensive and 2× as effective.

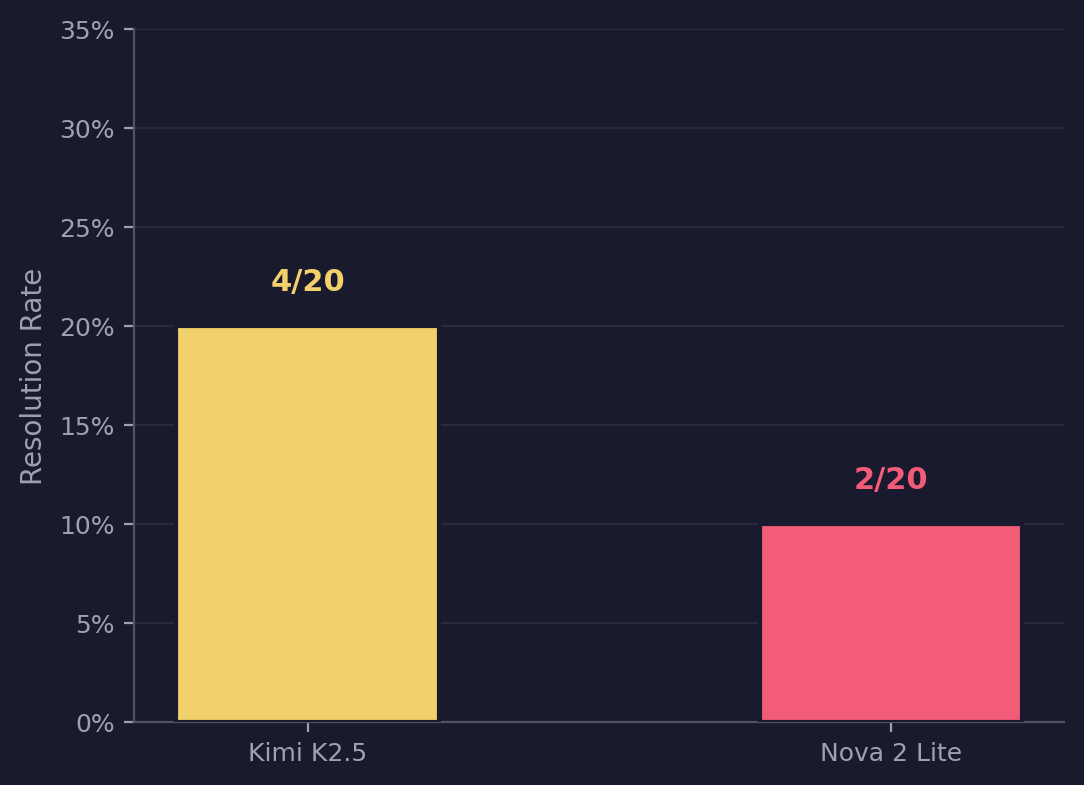

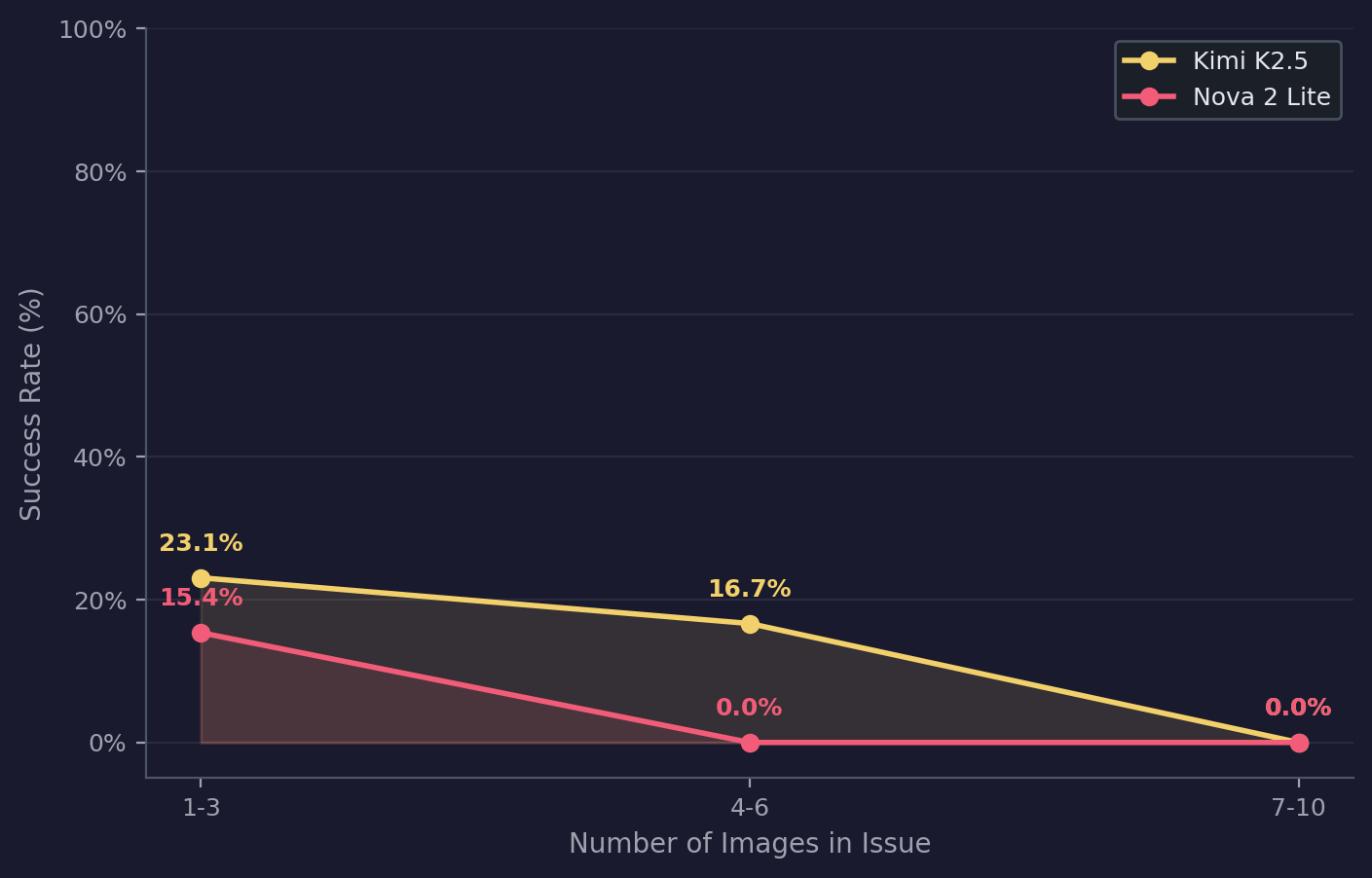

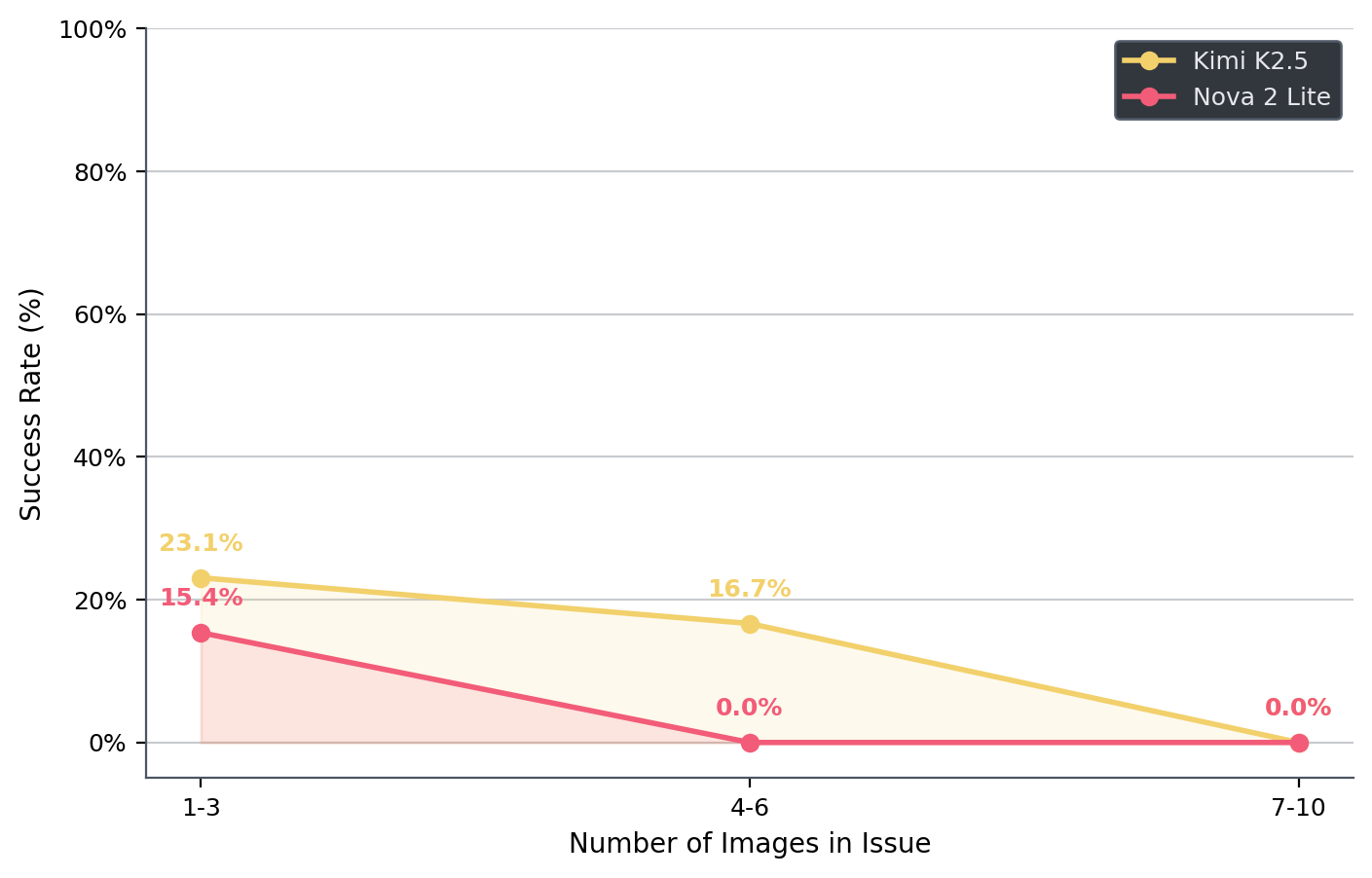

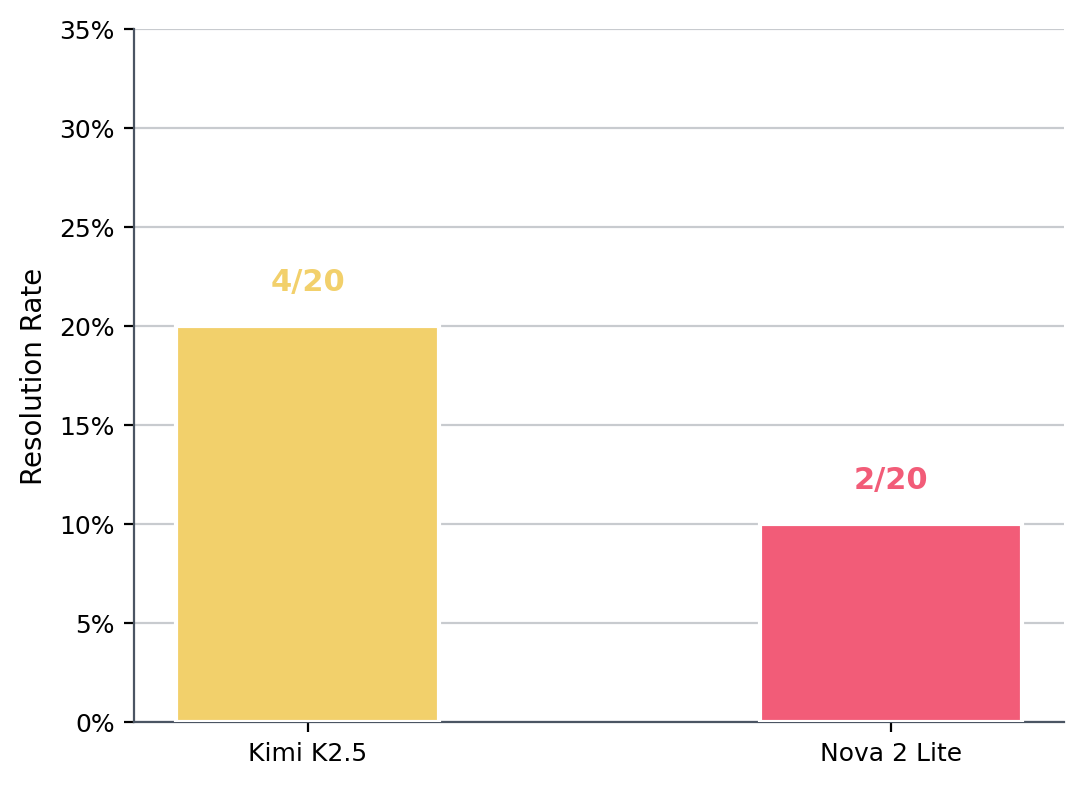

Overall resolution rate (Fig. 1) plus per-model degradation as the number of embedded images in an issue grows (Fig. 2). See §05 for per-instance receipts.
§05 · Instances
Every run, receipt-by-receipt. PASS means the model's patch fixed the issue and didn't regress existing tests.
Kimi K2.5 · Pass@1
20%
4 of 20 resolved
Nova 2 Lite · Pass@1
10%
2 of 20 resolved
Both models passed
2instances
p5.js-6222 · p5.js-6251
Runtime range
9.8s→ 12m
Pillow-6592 → libvips-4510
| Instance | Lang | Diff | Kimi K2.5 | Nova 2 Lite | |
|---|---|---|---|---|---|
| Totals | 4 / 20 | 2 / 20 | |||
Click any row for full run metadata.
